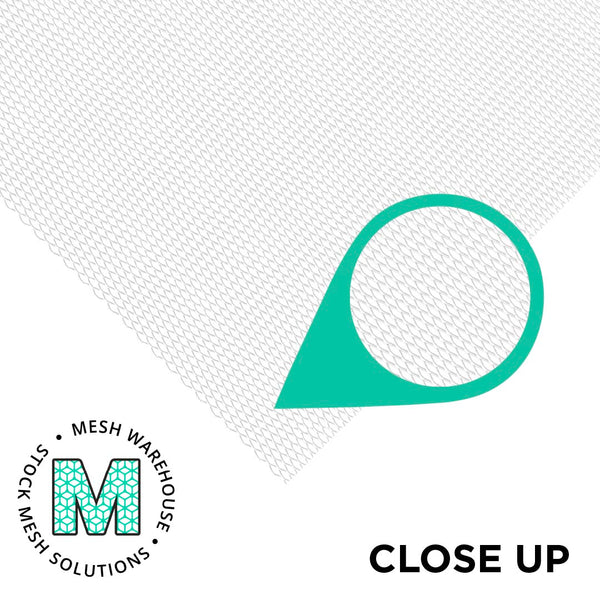

The Zircon RB25 mesh ceiling tile is designed to sit into a 24mm ceiling grid. The mesh tile comes flat with raw edge (no frame). Expanded mesh is an excellent product due to it having no wastage during the manufacturing process, a flat sheet of material is slit and stretched at the same time to create the opening. This helps to create a strong and robust product with excellent airflow properties.

Typical applications where Zircon RB25 mesh tiles can be installed include the following:

Commercial: Office, Meeting Rooms, Corridors, Conference Centres
Recreation and Culture: Museums, Sport Stadiums, Arenas
Education: Schools, Libraries
Hospitality: Hotels and Restaurants
Retail: Shops
Transport: Airports, Train Stations
Ceiling Tile Size

Width Length

595mm 595mm

Technical Specifications

Specification Zircon RB25

Type Flat, raw edge (no frame)

Frame Material Mild Steel

Mesh Open Area 60%

Mesh Material Mild Steel

Finish RAL 9010 (White)

Total Weight 1.69kg

Application Photos

Zircon RB25 Mesh Ceiling Tile - White - 595x595mm
