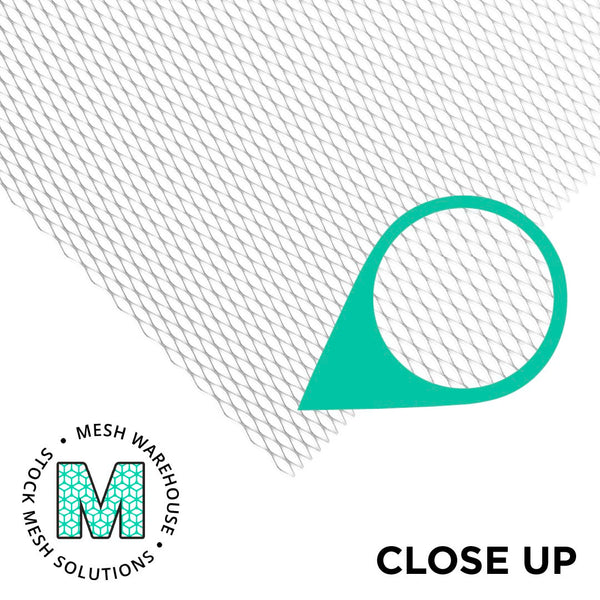

The Zircon RB35 mesh ceiling tile is designed to sit into a 24mm ceiling grid. The mesh tile comes flat with raw edge (no frame). Expanded mesh is an excellent product due to it having no wastage during the manufacturing process, a flat sheet of material is slit and stretched at the same time to create the opening. This helps to create a strong and robust product with excellent air flow properties.

Typical applications where Zircon RB35 mesh tiles can be installed include:

Commercial: Office, Meeting Rooms, Corridors, Conference Centres
Recreation and Culture: Museums, Sport Stadiums, Arenas
Education: Schools, Libraries
Hospitality: Hotels and Restaurants
Retail: Shops
Transport: Airports, Train Stations

Ceiling Tile Size

Width	Length
595mm	595mm

Technical Specifications

Specification	Zircon RB35
Type	Flat, raw edge (no frame)
Frame Material	Mild Steel
Mesh Open Area	60%
Mesh Material	Mild Steel
Finish	RAL 9010 (White)
Total Weight	1.69kg

Application Photos

Zircon RB35 Mesh Ceiling Tile - White - 595x595mm
